IFI 553 Metric Drive Pin Blind Rivets

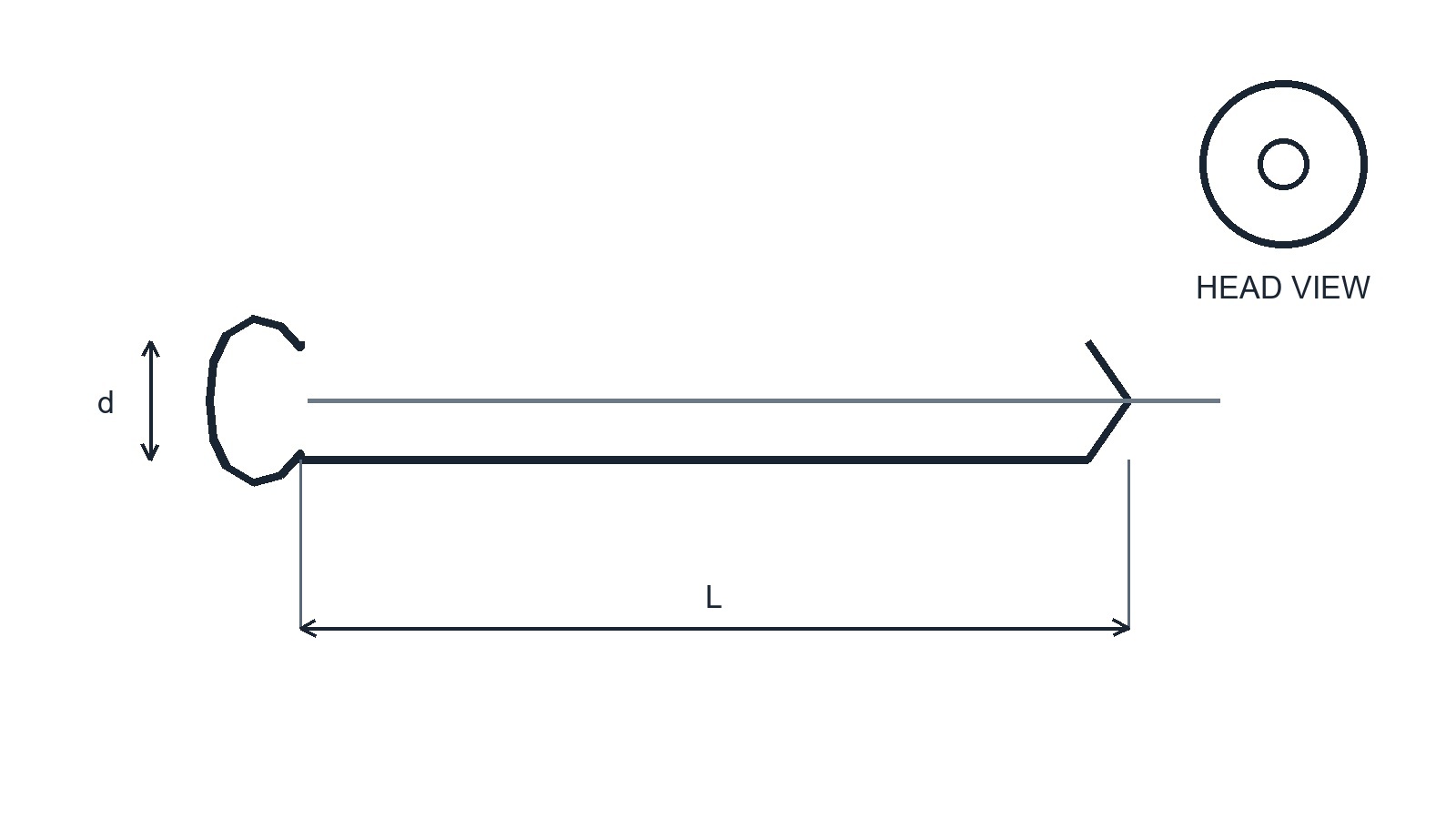

IFI-553 covers metric drive-pin blind rivets, including protruding-head and countersunk forms. Drawing shows the rivet body, drive pin and formed blind side.
Representative nominal body diameter series
| Body d | Head form | Length | Pin | Unit |
|---|---|---|---|---|
| 3.2 | Protruding / countersunk | By grip range | Drive pin | mm |
| 4.0 | Protruding / countersunk | By grip range | Drive pin | mm |
| 4.8 | Protruding / countersunk | By grip range | Drive pin | mm |
| 6.3 | Protruding / countersunk | By grip range | Drive pin | mm |
Representative nominal body diameters only. Head, grip range, body length and pin dimensions must come from the complete IFI-553 schedule.
