IFI 528 Metric Studs and Bent Bolts

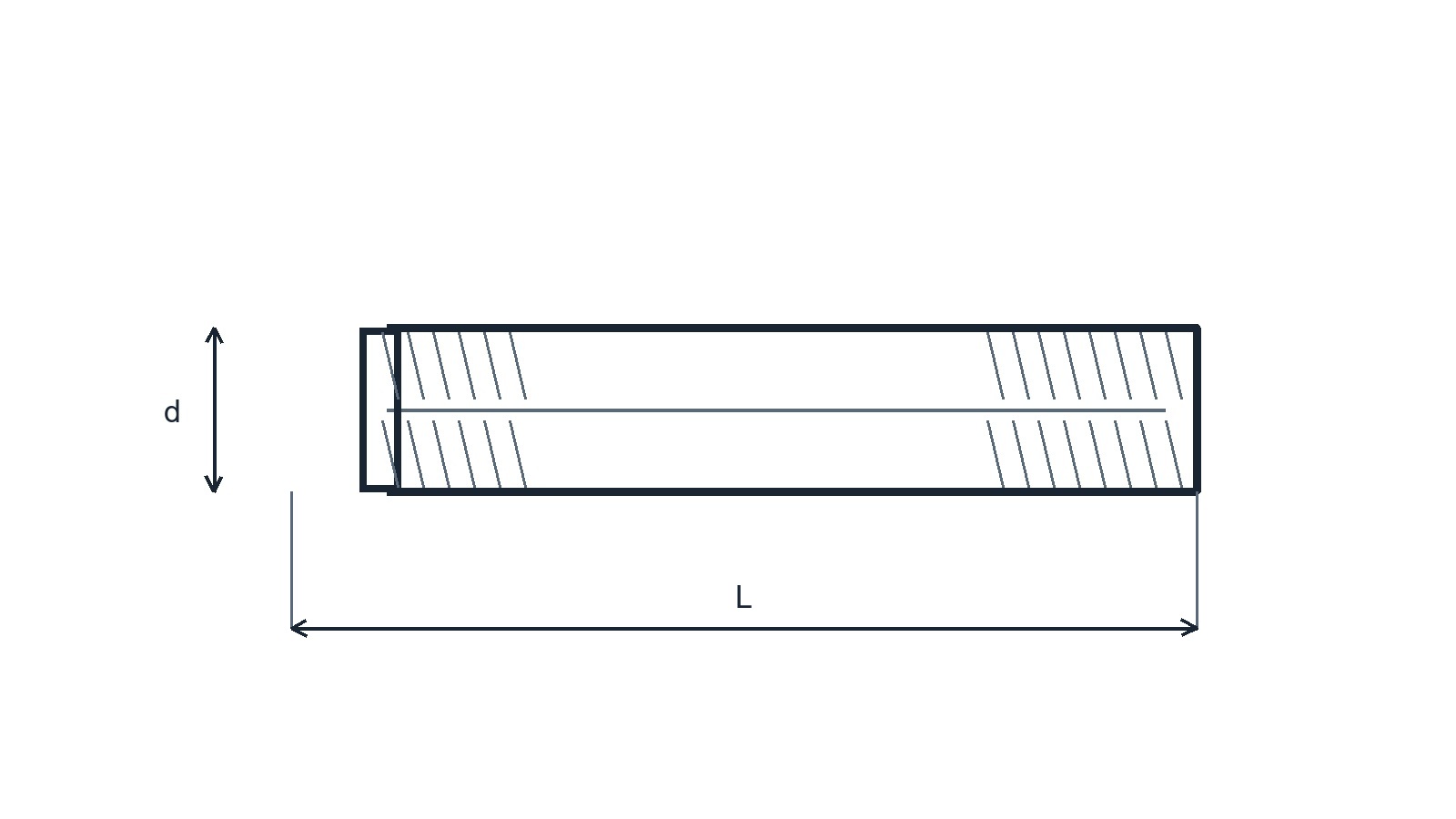

IFI-528 covers metric studs and bent bolts. Drawing shows a double-end stud with thread diameter, engagement length and overall length.
Selected engagement dimensions (mm)
| Thread | P | b min | b max | Length |
|---|---|---|---|---|
| M5 | .8 | 16 | 19.2 | L ≤ 125 |
| M6 | 1 | 18 | 22 | L ≤ 125 |
| M8 | 1.25 | 22 | 27 | L ≤ 125 |
| M10 | 1.5 | 26 | 32 | L ≤ 125 |
| M12 | 1.75 | 30 | 37 | L ≤ 125 |
Selected engagement lengths for studs L ≤ 125 mm. Select the stud type and end configuration from the complete standard.
