IFI 133 Aluminum Wire for Blind Rivet Mandrels and Bodies

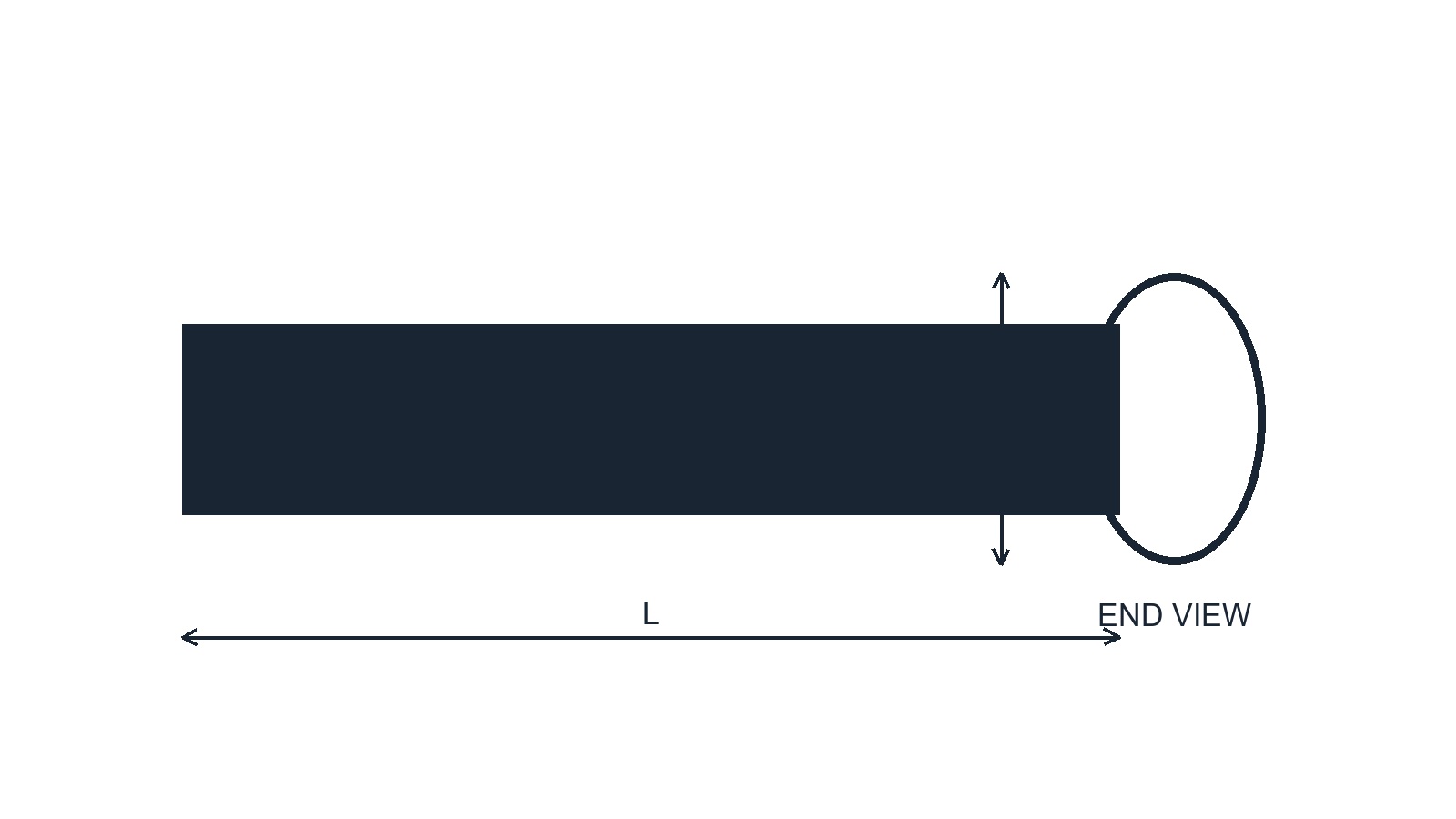

IFI-133 covers aluminum wire used for blind-rivet mandrels and bodies. Drawing shows round stock and identifies wire diameter and cut length.
Material-form drawing references
| Feature | Symbol | Meaning | Controlled by |
|---|---|---|---|
| Round wire | d | Incoming wire diameter | Material order |
| Stock length | L | Cut length before forming | Manufacturing process |
| Mandrel | d and L | Cut blank formed into mandrel | Rivet product design |
| Body | d and L | Cut blank formed into body | Rivet product design |
Material standard, not finished-rivet dimensions. Select stock diameter and cut length from the rivet design and material schedule.
