IFI 117 Pull-Through Mandrel Blind Rivets

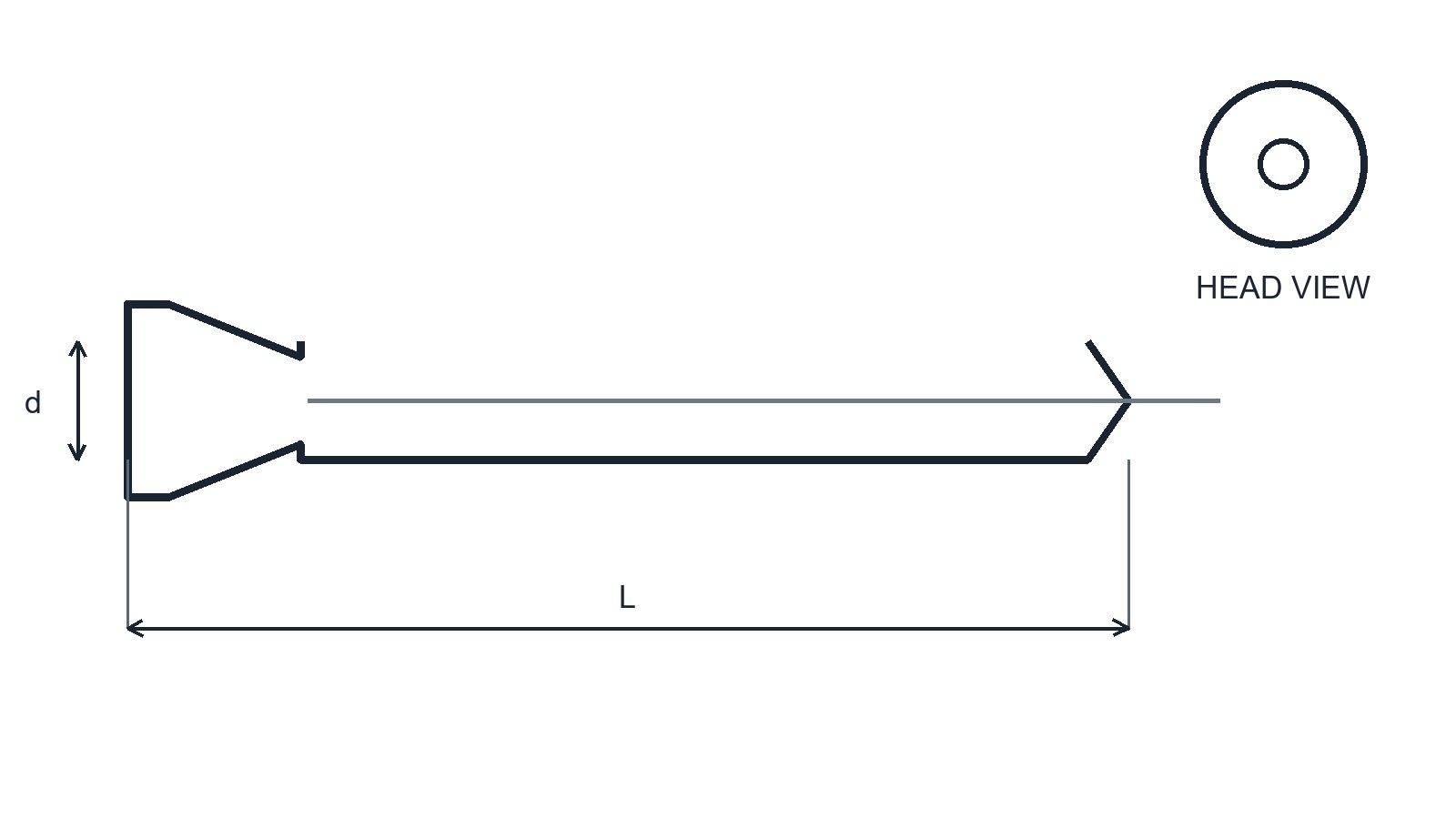

IFI-117 covers pull-through mandrel blind rivets. Drawing shows body, head and mandrel forming the blind-side bulb.
Selected countersunk-head dimensions (in)
| Size | d nominal | d max | d min | dk max | dk min | k max |
|---|---|---|---|---|---|---|
| 4 | .125 | .128 | .122 | .233 | .206 | .045 |
| 5 | .156 | .159 | .153 | .294 | .265 | .058 |
| 6 | .188 | .190 | .184 | .361 | .329 | .073 |
| 8 | .250 | .253 | .247 | .484 | .447 | .098 |
Selected 100-degree countersunk sizes. Verify head style, grip range and mandrel in the complete standard.
