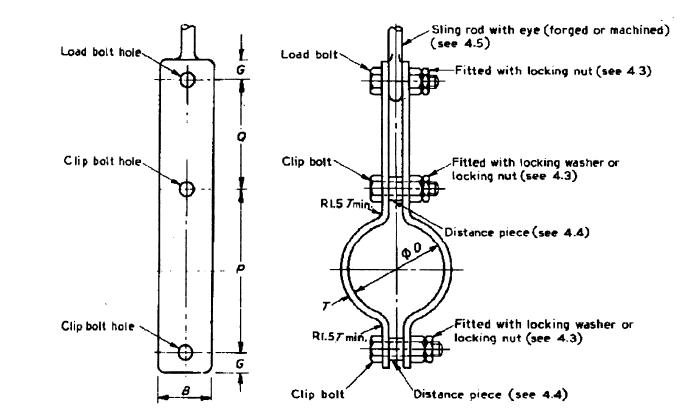

Dimensions of pipe for steel pipes, Range C: above 400 °C to 470 °C

Pipe size		Light series									Heavy series
Pipe size		Sling rod dia.	D dia.	Clip dimensions B x T	P	Q	Clip and load bolts		G min.	Safe working load	Sling rod dia.	D dia.	Clip dimensions B x T	P	Q	Clip and load bolts		G min.	Safe working load
Nom. size	Outside dia	Sling rod dia.	D dia.	Clip dimensions B x T	P	Q	Bolt	Hole dia.	G min.	Safe working load	Sling rod dia.	D dia.	Clip dimensions B x T	P	Q	Bolt	Hole dia.	G min.	Safe working load
mm	mm	mm	mm	mm	mm	mm		mm	mm	kgf	mm	mm	mm	mm	mm		mm	mm	kgf
15	21.3	USE HEAVY SERIES									10	23	35 X 5	65	70	M10	12	15	280
20	26.9	USE HEAVY SERIES									10	28	35 x 5	70	70	M10	12	15	280
25	33.7	10	36	35 x 5	75	70	M10	12	15	90	10	36	35 x 8	95	60	M10	12	15	280
32	42.4	12	44	35 x 5	90	70	M12	15	15	90	12	44	35 x 8	110	60	M12	15	18	280
40	48.3	12	50	35 x 5	95	70	M12	15	15	90	12	50	35 x 8	115	75	M12	15	18	280
50	60.3	12	62	35 x 5	95	85	M12	15	15	90	12	62	35 x 8	125	70	M12	15	18	280
65	76.1	12	80	35 x 8	145	95	M12	15	18	165	16	80	35 x 8	155	90	M16	19	24	450
80	88.9	12	92	35 x 8	155	95	M12	15	18	165	16	92	35 x 8	165	95	M16	19	24	450
100	114.3	12	118	35 x 8	190	95	M12	15	18	165	16	118	45 x 10	200	90	M16	19	24	450
125	139.7	16	144	45 x 10	225	90	M16	19	24	280	16	144	45 x 10	225	90	M16	19	24	450
150	168.3	16	172	45 x 10	255	90	M16	19	24	280	16	172	45 x 10	255	90	M16	19	24	450
175	193.7	16	198	45 x 10	280	90	M16	19	24	280	20	198	55 x 15	315	75	M20	24	30	900
200	219.1	16	224	45 x 10	305	100	M16	19	24	280	20	224	55 x 15	340	80	M20	24	30	900
225	244.5	16	248	55 x 15	350	85	M16	19	24	450	20	248	65 x 20	390	70	M20	24	30	1 350
250	273.0	16	278	55 x 15	385	95	M16	19	24	450	20	278	65 x 20	415	80	M20	24	30	1 350
300	323.9	20	330	65 x 20	470	115	M20	24	30	900	24	330	90 x 25	505	115	M24	28	36	1 800
350	355.6	24	362	65 x 20	510	115	M24	28	36	900	30	362	110 x 25	550	115	M30	35	45	2 250
400	406.4	24	412	90 x 25	585	115	M24	28	36	1 350	30	412	120 x 30	625	115	M30	35	45	2 700
450	457.0	30	464	110 x 20	650	115	M30	35	45	1 800	36	464	120 x 35	710	115	M36	42	54	3 600
500	508.0	30	516	120 x 30	725	115	M30	35	45	2 250	36	516	110 x 45	815	115	M36	42	54	4 500
550	559.0	30	566	120 x 30	775	115	M30	35	45	2 250	36	566	110 x 45	865	115	M36	42	54	4 500
600	610.0	30	618	120 x 35	855	115	M30	35	45	2 700	42	618	130 x 50	955	115	M42	48	63	5 900
