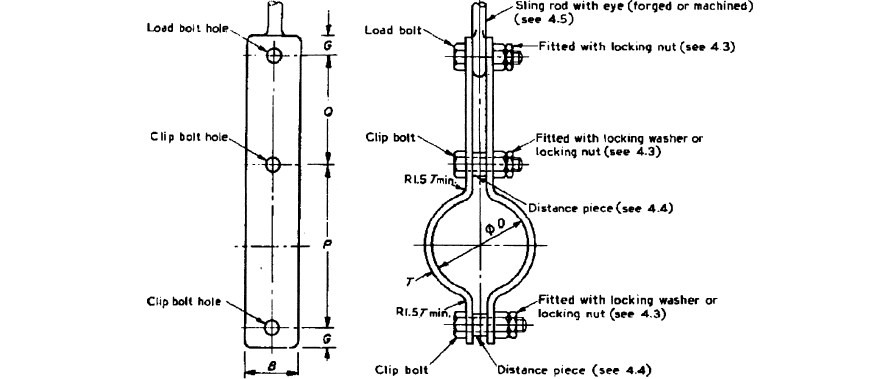

Dimensions of pipe for steel pipes, Range B: -20 °C to 400 °C

Dimensions of pipe for steel pipes, Range B: -20 °C to 400 °C

Pipe size		Light series									Heavy series
		Sling rod dia.	D dia.	Clip dimensions B x T	P	Q	Clip and load bolts		G min.	Safe working load	Sling rod dia.	D dia.	Clip dimensions B x T	P	Q	Clip and load bolts		G min.	Safe working load
Nom. size	Outside dia						Bolt	Hole dia.								Bolt	Hole dia.
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgf	mm	mm	mm	mm	mm	mm	mm	mm	kgf
15	21.3	USE HEAVY SERIES									10	23	35 X 5	65	70	M10	12	15	280
20	26.9										10	28	35 x 5	70	70	M10	12	15	280
25	33.7										10	36	35 x 5	75	70	M10	12	15	280
32	42.4										12	44	35 x 5	90	70	M12	15	18	280
40	48.3										12	50	35 x 5	95	70	M12	15	18	280
50	60.3										12	62	35 x 5	95	85	M12	15	18	280
65	76.1	12	80	35 x 5	125	105	M12	15	18	165	16	80	35 x 8	155	90	M16	19	24	450
80	88.9	12	92	35 x 5	135	105	M12	15	18	165	16	92	35 x 8	165	95	M16	19	24	450
100	114.3	12	118	35 x 5	170	105	M12	15	18	165	16	118	35 x 8	190	95	M16	19	24	450
125	139.7	16	144	35 x 8	215	95	M16	19	24	280	16	144	35 x 8	215	95	M16	19	24	450
150	168.3	16	172	35 x 8	245	95	M16	19	24	280	16	172	35 x 8	245	95	M16	19	24	450
175	193.7	16	198	35 x 8	270	95	M16	19	24	450	16	198	45 x 10	288	85	M20	19	24	900
200	219.1	16	224	35 x 8	295	100	M16	19	24	450	16	224	45 x 10	315	95	M20	19	24	900
225	244.5	16	248	45 x 10	330	95	M16	19	24	450	20	248	55 x 15	365	85	M20	24	30	1 350
250	273.0	16	278	45 x 10	360	105	M16	19	24	450	20	278	55 x 15	390	90	M20	24	30	1 350
300	323.9	20	330	55 x 15	445	115	M20	24	30	900	24	330	60 x 20	475	115	M24	28	36	1 800
350	355.6	24	362	55 x 10	485	115	M24	28	36	900	30	362	65 x 20	525	115	M30	35	45	2 250
400	406.4	24	412	65 x 20	560	115	M24	28	36	1 350	30	412	90 x 25	600	115	M30	35	45	2 700
450	457.0	30	464	65 x 20	625	115	M30	35	45	1 800	36	464	90 x 25	660	115	M36	42	54	3 600
500	508.0	30	516	90 x 25	700	115	M30	35	45	2 700	36	516	100 x 30	740	115	M36	42	54	4 500
550	559.0	30	566	90 x 25	750	115	M30	35	45	2 700	36	566	100 x 30	790	115	M36	42	54	4 500
600	610.0	30	618	90 x 25	805	115	M30	35	45	2 700	42	618	100 x 35	880	115	M42	48	63	5 900
