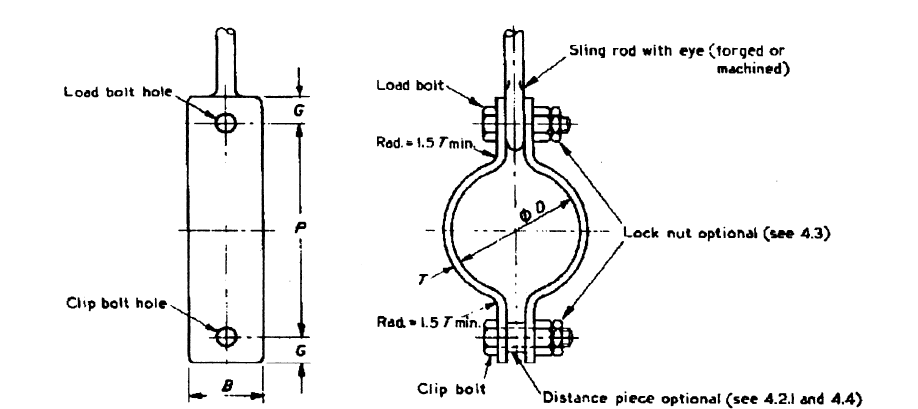

Dimensions of pipe for steel and cast iron pipes, Range A: - 20 °C to 100 °C

Dimensions of pipe for steel and cast iron pipes, Range A: - 20 °C to 100 °C

Pipe size		Light series								Heavy series
		Sling rod dia.	D dia.	Clip dimensions B x T	P	Clip and load bolts		G min.	Safe working load	Sling rod dia.	D dia.	Clip dimensions B x T	P	Clip and load bolts		G min.	Safe working load
Nom. size	Outside dia					Bolt	Hole dia.							Bolt	Hole dia.
mm	mm	mm	mm	mm	mm	mm	mm	mm	kgf	mm	mm	mm	mm	mm	mm	mm	kgf
15	21.3	USE HEAVY SERIES								10	23	35 X 5	65	M10	12	15	280
20	26.9									10	28	35 x 5	70	M10	12	15	280
25	33.7									10	36	35 x 5	75	M10	12	15	280
32	42.4									12	44	35 x 5	90	M12	15	18	280
40	48.3									12	50	35 x 5	95	M12	15	18	280
50	60.3									12	62	35 x 5	95	M12	15	18	280
65	76.1	12	80	35 x 5	125	M12	15	18	165	16	80	35 x 8	155	M16	19	24	450
80	88.9	12	92	35 x 5	135	M12	15	18	165	16	92	35 x 8	165	M16	19	24	450
100	114.3	12	118	35 x 5	170	M12	15	18	165	16	118	35 x 8	190	M16	19	24	450
125	139.7	16	144	35 x 5	195	M16	19	24	280	16	144	35 x 8	215	M16	19	24	450
150	168.3	16	172	35 x 8	225	M16	19	24	280	16	172	35 x 8	245	M16	19	24	450
175	193.7	16	198	35 x 8	270	M16	19	24	450	16	198	45 x 10	280	M16	19	24	900
200	219.1	16	224	35 x 8	295	M16	19	24	450	16	224	45 x 10	305	M16	19	24	900
225	244.5	16	248	35 x 8	320	M16	19	24	450	20	248	60 x 10	340	M20	24	30	1 350
250	273.0	16	278	35 x 8	350	M16	19	24	450	20	278	60 x 10	365	M20	24	30	1 350
300	323.9	20	330	45 x 10	420	M20	24	30	900	24	330	55 x 15	455	M24	28	36	1 800
350	355.6	24	362	55 x 10	460	M24	28	36	900	30	362	55 x 15	500	M30	35	45	2 250
400	406.4	24	412	60 x 15	535	M24	28	36	1 350	30	412	65 x 20	575	M30	35	45	2 700
450	457.0	30	464	65 x 20	625	M30	35	45	2 250	36	464	80 x 20	635	M36	42	54	3 600
500	508.0	30	516	65 x 20	675	M30	35	45	2 250	36	516	90 x 25	715	M36	42	54	4 500
550	559.0	30	566	65 x 20	725	M30	35	45	2 250	36	566	90 x 25	765	M36	42	54	4 500
600	610.0	30	618	80 x 20	780	M30	35	45	2 700	42	618	110 x 25	830	M42	48	63	5 900

Dimensions of pipe clips for cast iron pipes, Range A: - 20 °C to 100 °C

Pipe size		Light series								Heavy series
		Sling rod dia.	D dia.	Clip dimensions B x T	P	Clip and load bolts		G min.	Safe working load	Sling rod dia.	D dia.	Clip dimensions B x T	P	Clip and load bolts		G min.	Safe working load
Nom. size	Outside dia					Bolt	Hole dia.							Bolt	Hole dia.
mm	mm	mm	mm	mm	mm	mm	mm	mm	kgf	mm	mm	mm	mm	mm	mm	mm	kgf
80	98	12	100	35 x 5	140	M12	15	18	165	16	100	35 x 8	165	M16	19	24	450
100	118	12	120	35 x 5	170	M12	15	18	165	16	120	35 x 8	190	M16	19	24	450
a 150	170	16	172	35 x 5	225	M16	19	24	280	16	172	35 x 8	245	M16	19	24	450
a 200	222	16	224	35 x 8	295	M16	19	24	450	16	224	45 x 10	305	M16	19	24	900
a 250	274	16	278	35 x 8	350	M16	19	24	450	20	278	60 x 10	365	M20	24	30	1 350
a 300	326	20	330	45 x 10	420	M20	24	30	900	24	330	55 x 15	455	M24	28	36	1 800
350	378	24	380	55 x 10	480	M24	28	36	900	30	380	55 x 15	520	M30	35	45	2 250
400	429	24	435	60 x 15	555	M24	28	36	1 350	30	435	65 x 20	595	M30	35	45	2 700
450	480	30	485	65 x 20	645	M30	35	45	2 250	36	485	80 x 20	635	M36	42	54	3 600
500	532	30	535	65 x 20	695	M30	35	45	2 250	36	535	90 x 25	735	M36	42	54	4 500
600	635	30	640	80 x 20	800	M30	35	45	2 700	42	640	110 x 25	850	M42	48	63	5 900
a These clips are identical with those for steel pipe of the same nominal size.
