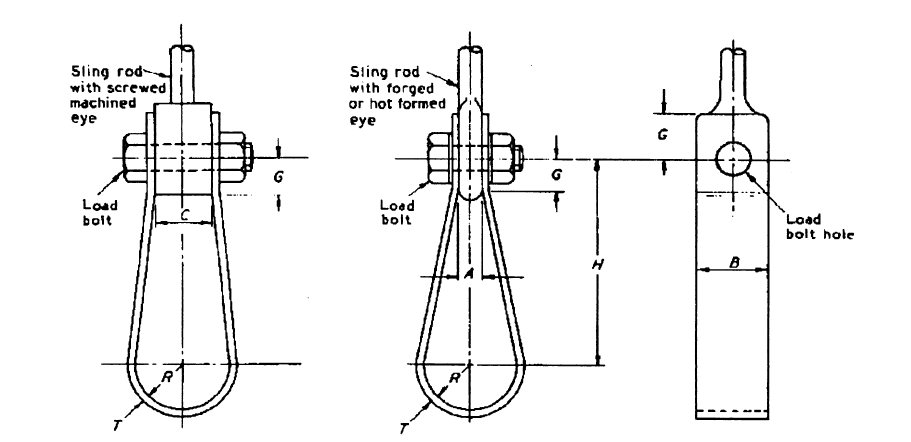

Dimensions of one piece strap (with screwed machined, forged and hot formed eye) for uninsulated steel pipe

Nominal pipe size	pipe o.d.	Sling rod dia.	C or A	R	B	T	G	H	Load bolt hole	Load bolt	Safe working load
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgf
15	21.3	8	See	12	20	3	17	70	11	M8	70
20	26.9	8	Table 1,	14	20	3	17	75	11	M8	70
25	33.7	8	Table 3 and	17	20	3	17	75	11	M8	70
32	42.4	8	Table 4	22	20	3	17	80	11	M8	70
