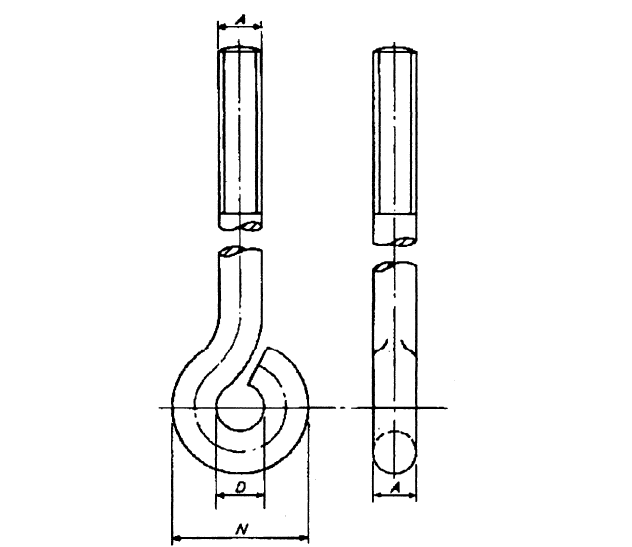

Dimensions of sling rod with hot formed eye

sling rod dia.A	D	N	Safe working load
mm	mm	mm	kgf
8	10	26	70
10	12	32	105
12	15	39	160
16	19	51	285
20	24	64	430
24	28	76	660
Note: The safe working loads given in Table 4 are those applicable to an open eye. The use of welding to close the eye shall not premit any increase in these working hands.
