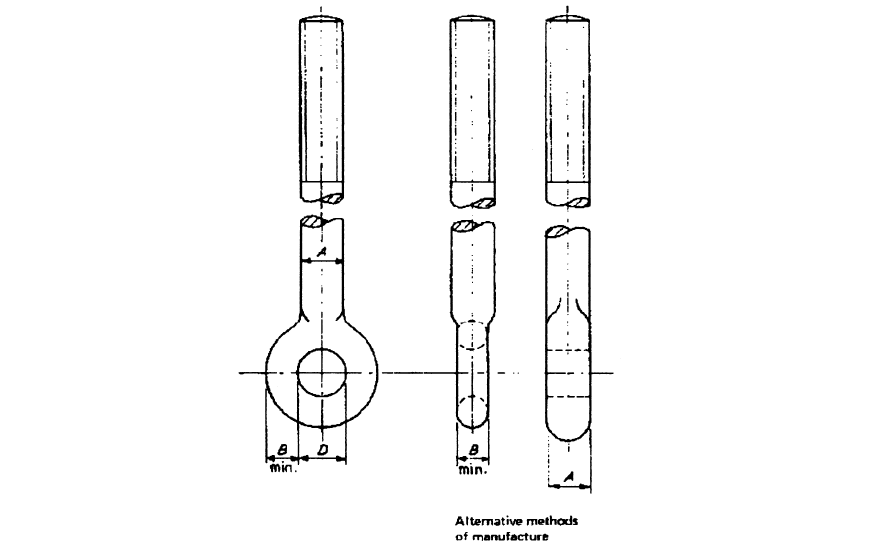

Dimensions of sling rod with integral forged eye

sling rod dia.A	D	B.min. (0.7 A)	Safe working load
mm	mm	mm	kgf
8	14	6	230
10	16	7	360
12	18	9	530
16	22	12	1 010
20	26	14	1 580
24	30	17	2 280
30	36	21	3 650
36	42	26	5 340
42	48	30	7 400
