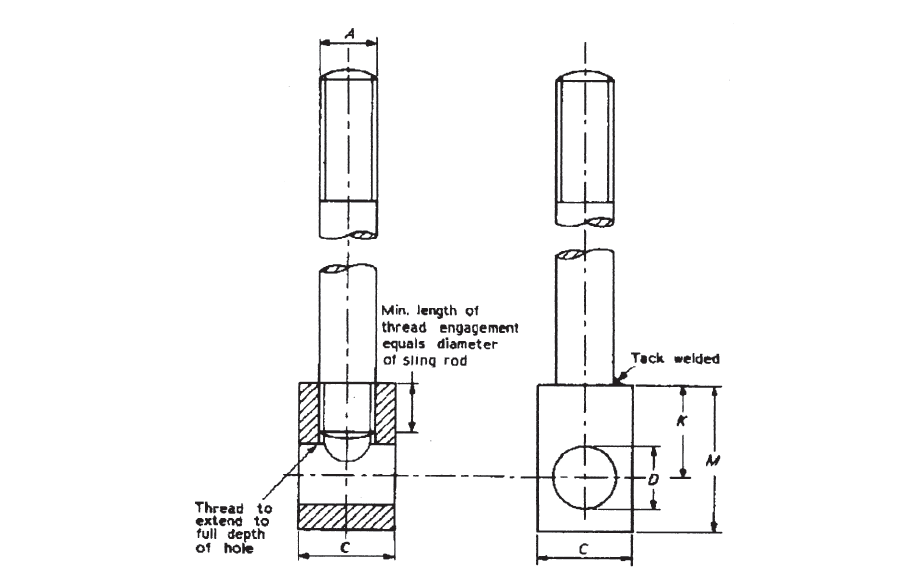

Dimensions of sling rod with screwed machined eye

sling rod dia.A	C	K	M	D dia.	Safe working load
mm	mm	mm	mm	mm	kgf
8	22	16	25	10	230
10	22	19	30	12	360
12	22	22	35	14	530
16	28	28	45	18	1 010
20	32	35	55	22	1 580
24	38	40	65	26	2 280
30	50	52	85	33	3 650
36	55	60	95	39	5 340
42	70	70	110	45	7 400
